TRACTOR LOADER 570N EP
Construction CASE

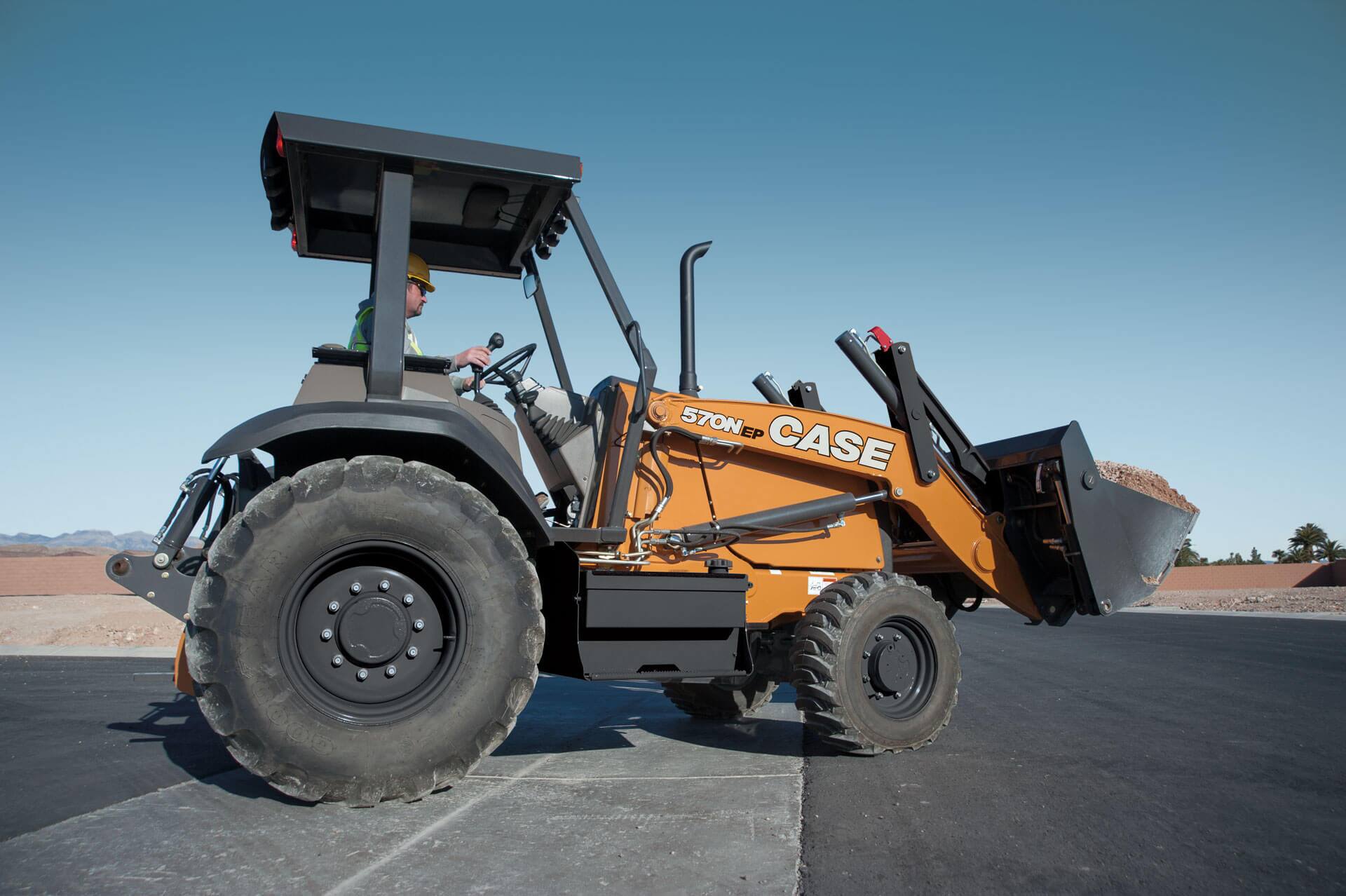

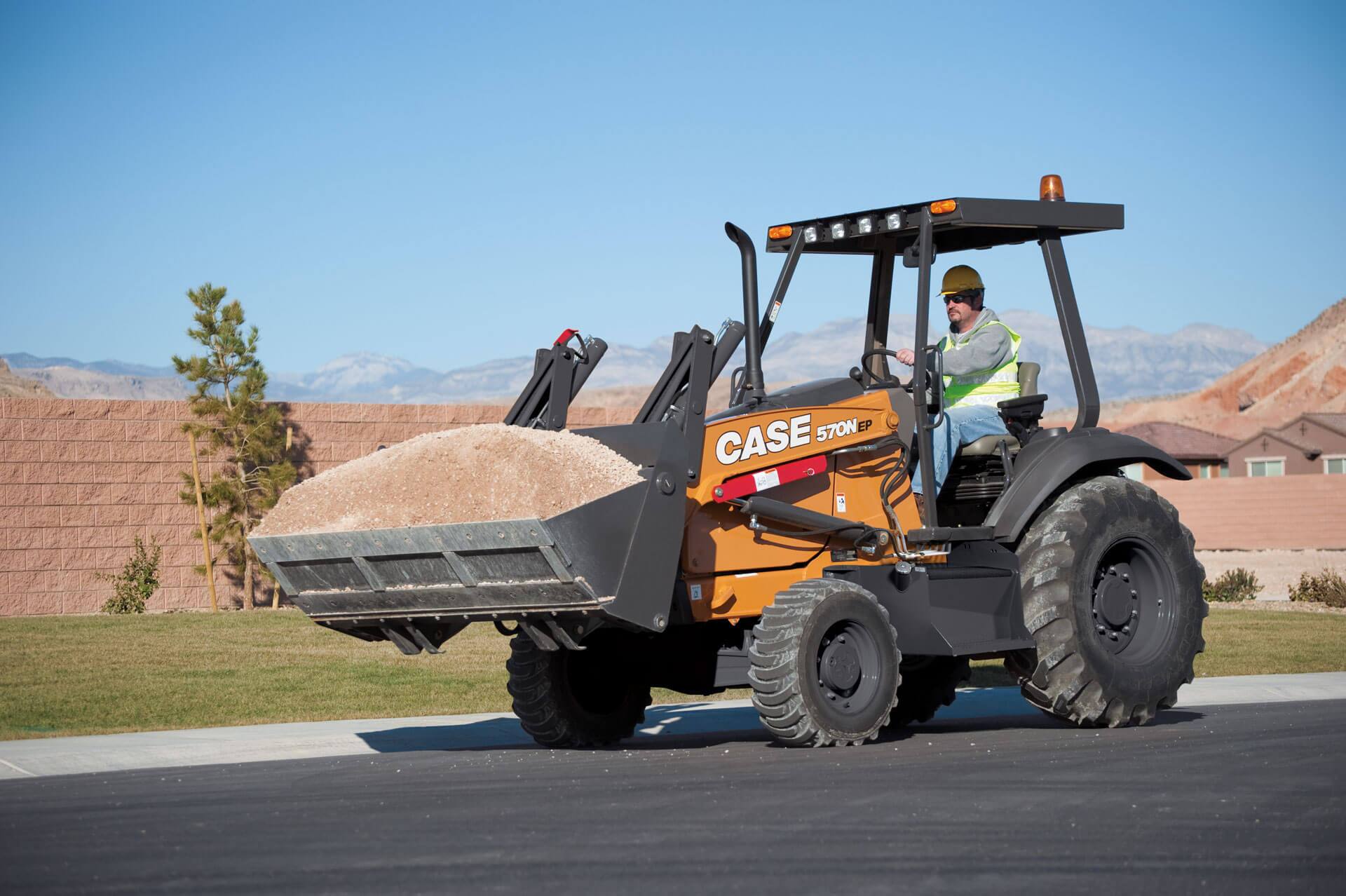

The Tier 4 Final CASE 570N EP tractor loader combines unbeatable lifting strength, ground speeds as fast as 24mph, and user-friendly features to provide contractors a skip loader that’s impressively cost effective, and incredibly easy to own and operate. It’s available with a rear 540-RPM PTO or 3-point hitch, as well as a hydraulic front quick coupler for optimal versatility.
Features
Details
Data sheets
Features
INDUSTRY-LEADING LIFT CAPACITY

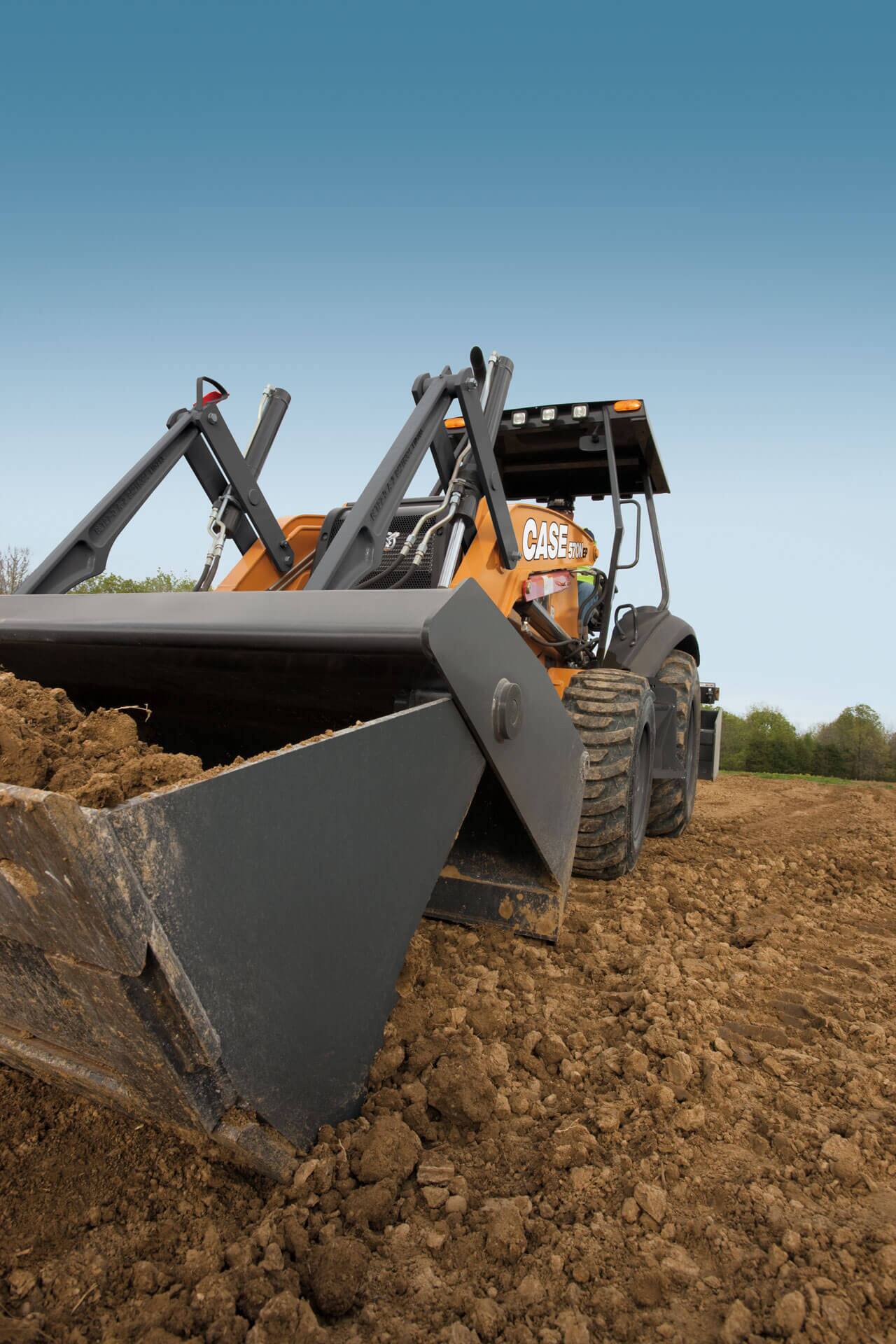

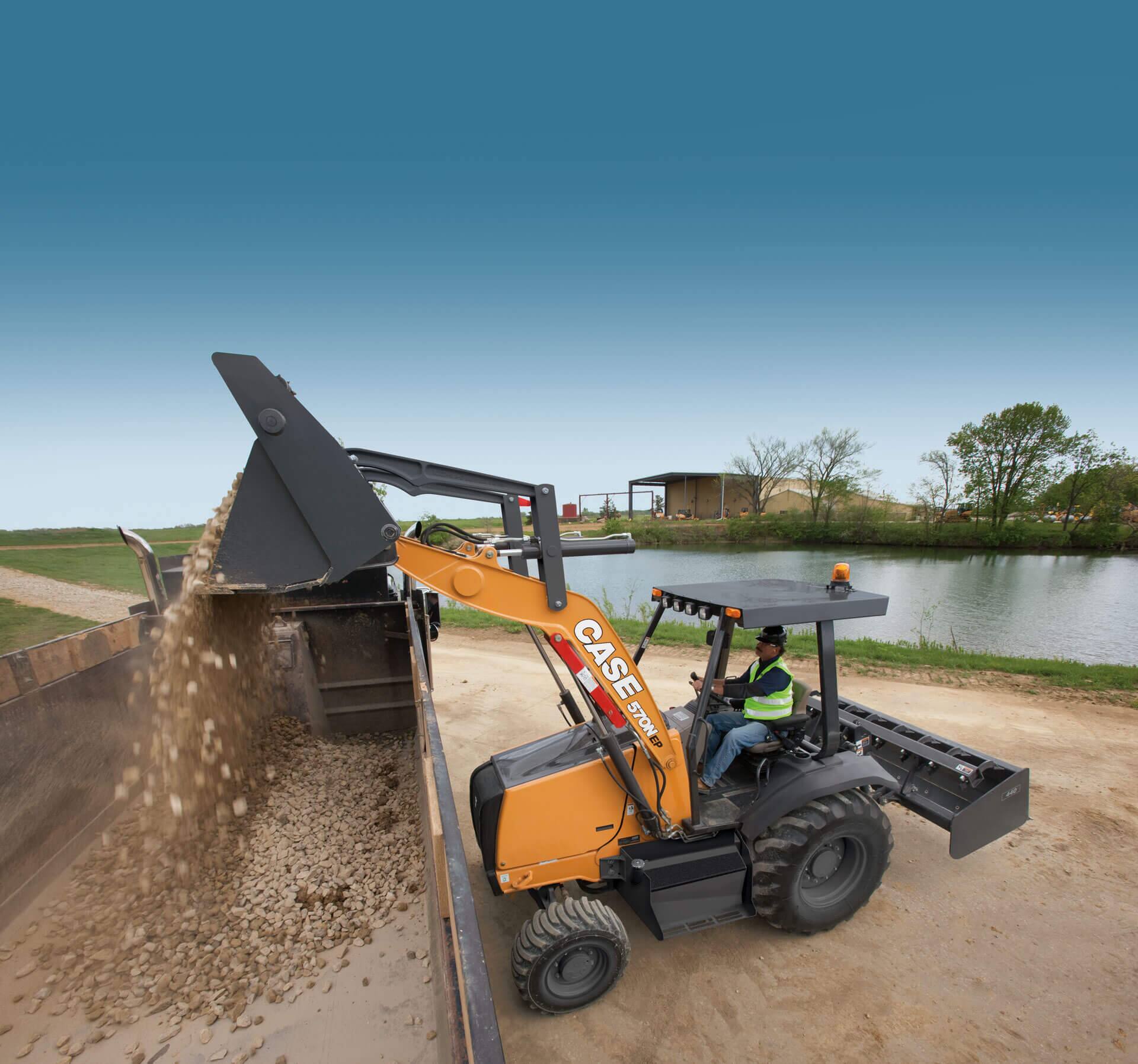

The CASE 570N EP tractor loader has a full-height lifting capacity of 6,503 lb., giving you more than three tons of lifting strength to move, load and stock more piles, palettes and material. Loader arms have heavy-duty in-line parallel linkage with a solid thru-pin design, dual bucket cylinders and a standard material retention feature to evenly transfer bucket stress up and through full dump. It all works together to provide faster cycles with less spillage.
ZERO-EFFORT TIER 4 FINAL SOLUTION
The 570N EP tractor loader uses a Diesel Oxidation Catalyst (DOC) to meet Tier 4 Final emissions standards. What does that mean to you? We’re proud to say – nothing. It’s compliance with no extra work and no additional costs. There’s no new fluid to add, no diesel particulate filter to replace and no fuel-burning regeneration required. Fuel up as normal, get in and get going.
COMFORT STEER™
The Comfort Steer option on CASE tractor loaders cuts lock-to-lock steering wheel rotations in half while in low gears. This lets you work considerably faster with less operator fatigue throughout the day.
RIDE CONTROL™
CASE created it. CASE perfected it. Move more material more comfortably with Ride Control, a push-button loader arm stabilization option. When carrying a full load at speeds up to 24 mph, activating Ride Control reduces bucket bounce to prevent spillage and provide a smoother ride.
SUPERIOR SIGHTLINES
The 570N EP tractor loader offers a three-position swivel seat that pivots 15° and 30° to the right for easy viewing of rear-facing attachments while also keeping the wheel and all controls within comfortable reach. Fender cutaways give you a better view of rear implements and a low-profile hood, along with a canopy cutout (on optional low-profile canopy), allow for excellent visibility of the skip loader bucket throughout the complete dump cycle.
SECOND-TO-NONE SERVICEABILITY
Proper maintenance is how to get the most life and performance out of your skip loader. That’s why we make a point to make it easy. On the 570N EP tractor loader, you can check or change engine oil, oil filter, transmission fluid, coolant and fuel levels, all from one ground-level spot underneath a flip-up hood. Swing-out coolers, spin-on filters and axles that can be serviced without disassembly also support the CASE commitment to simple serviceability.
Details
STANDARD EQUIPMENT
ENGINE
- FPT 3.4 L diesel
- Cooled EGR
- Diesel Oxidation Catalyst
- Full flow engine oil filter
- Air cleaner – replaceable dry type with radial seal
- Radiator with de-aeration bottle
- Antifreeze to -34° F (-37° C)
- Foot throttle
- Self adjusting belt
- Fuel filter with water trap
DRIVETRAIN
- Front axle, as selected: 2WD heavy-duty front axle with 11.0 L x 16.0 tires, 4WD heavy-duty mechanically driven rear axle, with 12.0 L x 16.5 tires
- Rear axle: 2/4WD heavy-duty outboard planetary drive with 17.5 L x 24.0 tires, 4F-4R Power Shuttle Synchromesh transmission
- Torque converter
- On-the-go electric 4WD control
- Electric F/R shuttle control
- Electric differential lock control, with push-button activation – Located on the loader control lever and side console
- Park brake, spring-applied, hydraulic release
OPERATOR ENVIRONMENT
- ROPS/FOPS certified protective canopy
- 2 halogen headlights
- 2 rear flood lights
- 2 rear tail and stop lights
- 2 front flashers/turn lights
- 2 rear flashers/turn lights
- Anti-vandalism cover for dash and front console – w/ canopy only
- Pre-wired for radio – cab only
- Rear fenders w/ storage tray and molded beverage and thermos holder
- Coat hook w/ garment strap
- Interior rearview mirror
- Non-suspension seat – 15 degree and 30 degree swivel to the right
- 2 in (51 mm) retractable seat belt
- Cup holder/storage tray mounted on LH fender
- Gauges: Engine water temperature, Converter oil temperature, Fuel level, Tachometer/hourmeter, Voltmeter
- Warning lights: Air cleaner restriction, Alternator, A/C high pressure, Cold start, Engine oil pressure low, Hydraulic oil filter bypass, Parking brake engagement, Low fuel, Water in fuel
- Audible alarms: Coolant temperature, Engine oil pressure, Parking brake engagement, Shuttle engagement/seat position, Backup, Horn
HYDRAULICS
- Gear pump: 28.5 gal/min @ 3,000 psi (108 L/min @ 207 bar)
- Heavy-duty hydraulic oil cooler
- 7 micron, spin on oil filter
LOADER
- Bucket position indicator
- Lifting lugs on standard bucket
- Single lever control, with Self-Leveling and Return-to-Dig
- Hand-operated clutch disconnects on loader and shift levers
- Single lever 5-function loader control: Lift, Dump, Auxiliary function, Clutch cut-out, Differential-lock
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Manual Ride Control
- Comfort Steer
- ROPS and FOPS certified protective canopy: Short and standard height
- ROPS certified cab with heater, defroster, front and rear wipers and floor mat
- Cab Convenience Package containing: Flip forward sun visor; Window washer – front and rear; Radio Ready kit, including wiring, speakers and DIN radio mounting, Deluxe Interior Package
- Air-conditioning for cab models
- Mechanical suspension seat: With armrests – 15° and 30° swivel to the right, Cloth or vinyl, Adjustable seat height, backrest angle, Lumbar and thigh support
- Wide seat belt – 3 in (75 mm)
ENGINE
- Cold Weather Starting Aid with dual 12 Volt batteries and glow plugs
- Block heater
- Master disconnect switch and remote jump-start terminals
TRACTOR
- Chaff screen – dealer installed option
- Auxiliary work lights: 2 front and 2 rear flood for tall canopy and cab
- Canopy sun visor – tall canopy only
- 440 lb (200 kg) front counterweight
- Hand throttle – electric
- 500 lb (227 kg) counterweight, bolted to hitch frame
- 5th spool auxiliary circuit for 3-point hitch valve
- Tool portfolio of additional attachments
- 3-point hitch with 600 lb (272 kg) Plug in counterweight – cannot be used with PTO
- Driveshaft guard
- 3,000 lb (1 360 kg) rear counterweight
- Drawbar
- Rear wheel weights 564 lb (256 kg)
- PTO:
- 540 RPM, hydraulically powered rear PTO Ready. PTO hydraulic pump only, no motor
LOADER
- Auxiliary hydraulics for loader-mounted equipment
- Hydraulic front quick coupler
- Mechanical front quick coupler
- Buckets – less teeth: 82 in (2.08 m) general purpose Long Lip, with bolt-on cutting edge – includes lift eyes
- 82 in (2.08 m) general purpose Long Lip, without bolt-on cutting edge – includes lift eyes
- 82 in (2.08 m) 4 IN 1®, includes 3 Bolt-on cutting edges; Unit must be equipped with auxiliary loader hydraulics
- 93 in (2.36 m) light duty loader bucket
- Loader linkage without loader bucket
OTHER
- Tool box – bolt-on step-mounted
- Special paint
- Spare tires
WARRANTY
Base & Extended Warranty Coverage*
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
- Telematic included
Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Tool Carrier models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
Data sheets
570N EP SPECIFICATIONS
N SERIE BACKHOE BROCHURE
570 EP BID SPECIIFCATIONS
FULL LINE BROCHURE
