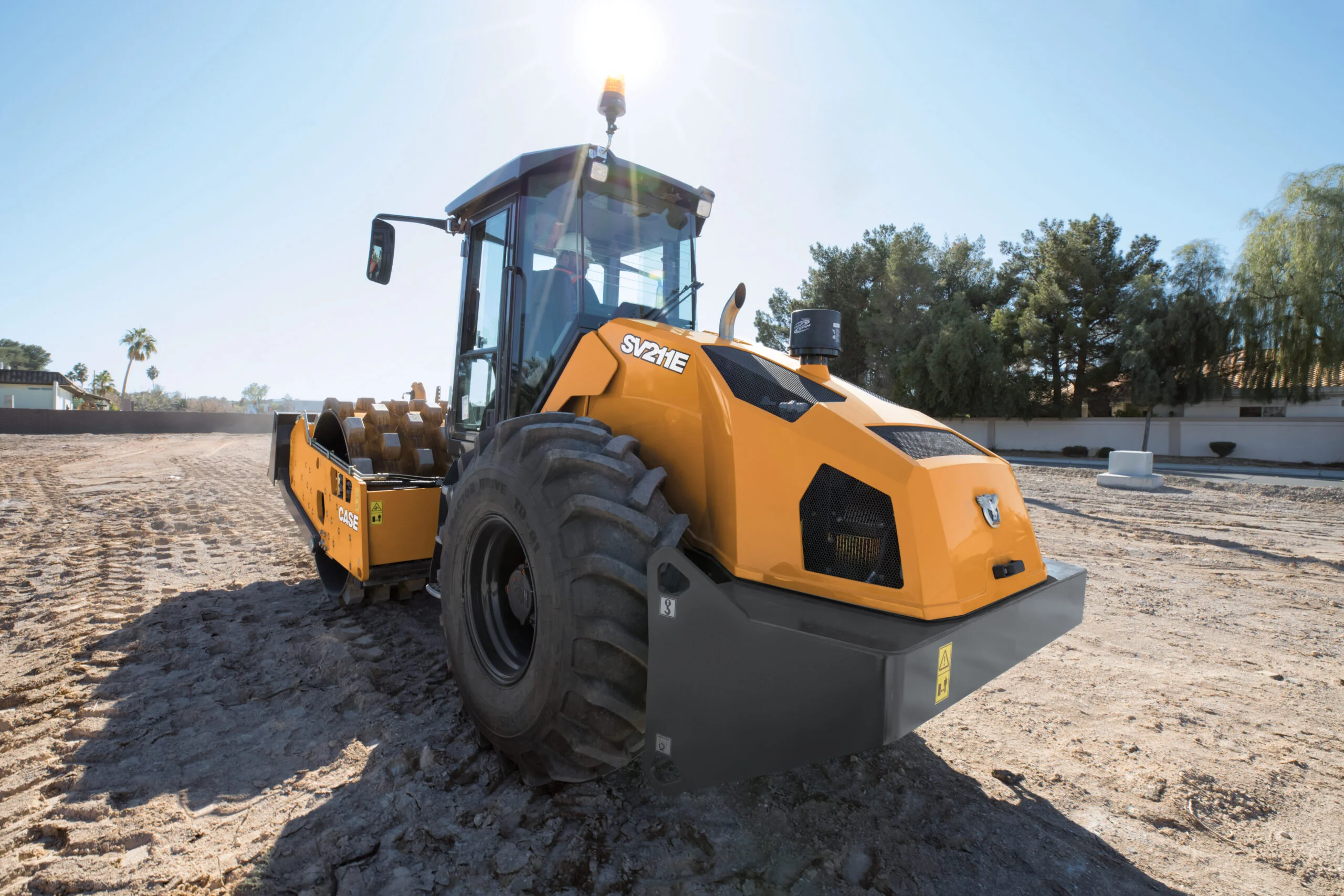

SOIL COMPACTOR SV211E
Construction CASE
Operating at 134 horsepower with 25,630 pounds of heft, the SV211E is the perfect combination of power and agility, able to dial in to compact lifts of all styles and profiles while still getting after grades up to 67 percent.
Features
Details
Data sheets
Features
Higher Centrifugal Forces = Greater Compaction Power
The SV211E provides a range of centrifugal forces from 34,845 pounds up to 64,070 pounds for optimal compaction power.
King of the Hill
The CASE SV211E features a low center of gravity thanks to an axle-free design that allows the engine to sit lower in the frame. When matched with the optional automatic traction control and HX drive propulsion system, the roller can compact on grades up to 67 percent.
More Compact, Fuel Efficient Design
Improvements to the frame design, styling and machine layout have resulted in improved visibility and operation.
Operator Environment: Enhanced
Available in both cab and open ROPS configurations, E Series soil compactors feature a spacious, comfortable and intuitive operator environment with an adjustable seat that swivels up to 80 degrees, providing excellent visibility of the drum surface. An LED display integrated within the steering wheel further improves operation, visibility and access to critical machine information.
Power to the Ground
Performance on rough, uneven terrain is improved with an oscillating articulated roller joint that maintains consistent drum-to-ground contact, and an updated drum design reduces drift and maintains constant compaction throughout each rotation.
Groundline Serviceability for Simplicity
The E Series is designed for groundline serviceability with easy access at ground level to all fluid ports, drains, service checkpoints and filters.
Details
STANDARD EQUIPMENT
OTHER
- ROPS and FOPS protection
- Hydrostatic drive for both drum and wheels
- Steel drum scrapers
- Diamond tread tires
- Telematics ready
- Interwheel differential lock
- Articulated chassis
- Front and rear tow points
- 4-point lift and tie-down provision
- Fan guard
- Backup alarm
- Halogen work lights, 2F/2R
- Master disconnect switch
- Spring applied, hydraulic release parking brake
- 3 working speeds/1 transport speed
- Spin-on fuel, engine oil and hydraulic filters
- Spring-assist tilting for engine hood
OPERATOR ENVIRONMENT
- Lockable tool box
- 3 in (76.2 mm) retractable seat belt
- Cup holder
- Single lever speed/direction control
- Emergency stop button
- Steering wheel embedded monitor
INSTRUMENT PANEL
- Steering wheel spinner knob
- Horn
VIBRATION SYSTEM
- Auto vibration control
- Dual amplitude vibration
- Dual frequency vibration
OPTIONAL EQUIPMENT
OTHER
- Automatic Traction Control (ATC) with HX Drive propulsion system:
- Standard on Padfoot models
- Leveling Blade
- Padfoot shell kit w/ scrapers
- Pressurized cab with heat, ventilation, air conditioning and radio ready – antenna and 2 speakers/no radio
- Engine filter pre-cleaner
- ACI Eco – Analog Compaction Indicator
- ACE Force Intelligent Compaction (Cab only)
- ACE Force Printer (Cab only)
- Extra front work lights (Smooth Drum only)
- Traction Tread tires
- Tire ballasting
- Rotating beacon
TELEMATICS
- CASE Sitewatch Telematics – includes hardware and a 3-yr Advanced data subscription
WARRANTY
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs
Data sheets
SV211E SPECIFICATIONS
E Series Soil Compactors
FULL LINE BROCHURE
