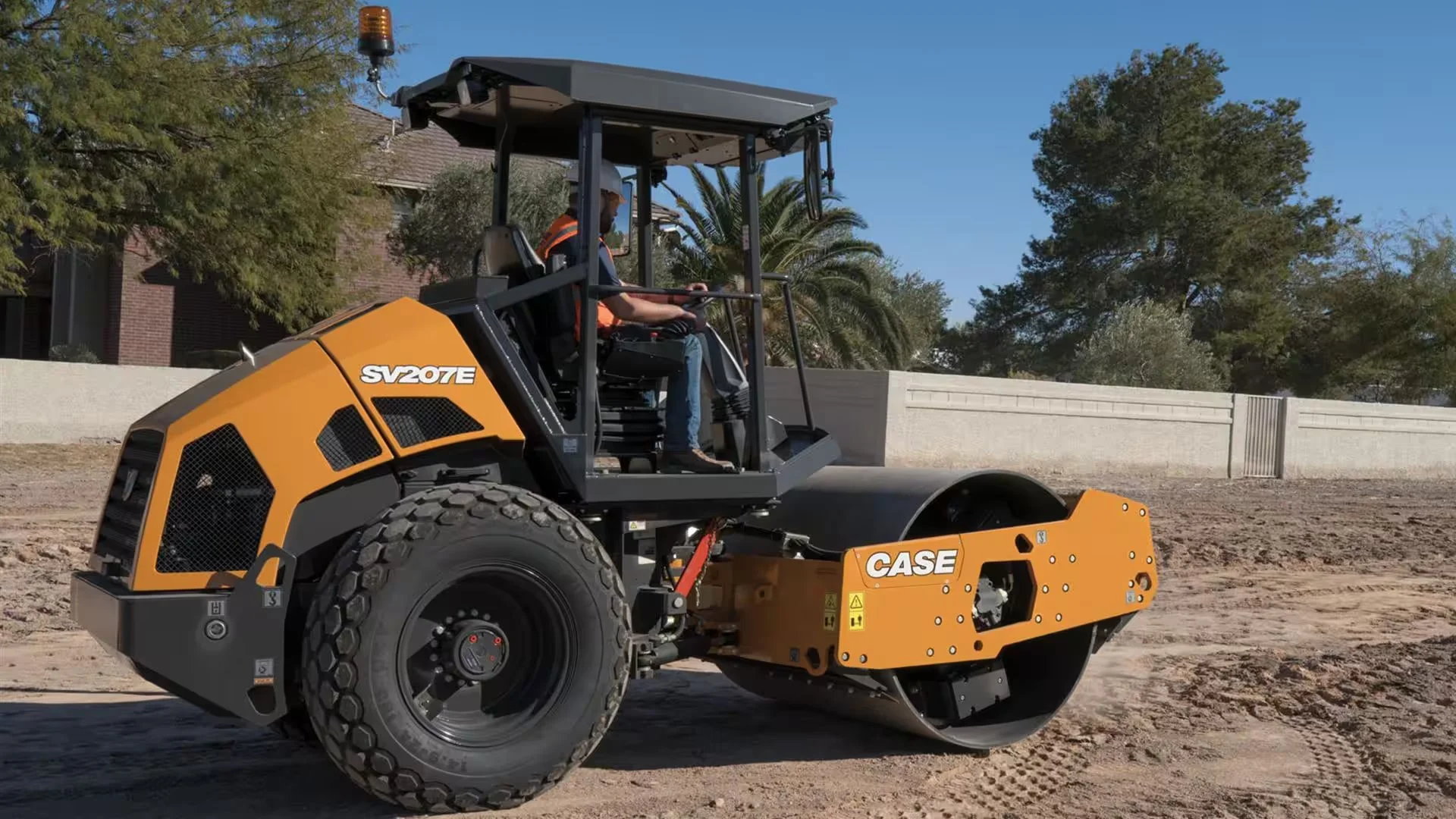

SOIL COMPACTOR SV207E
Construction CASE
The SV207E features a compact rear design and a smaller-diameter roller with a thicker shell that improves overall performance, maneuverability and transportation for compaction on jobsites of all sizes. With best-in-class centrifugal forces of up to nearly 30,000 pounds and dual amplitude/frequency functionality, the SV207E is one of the most compact and efficient single-drum rollers in the industry.
Features
Details
Data sheets
Features
Higher Centrifugal Forces = Greater Compaction Power
The SV207E provides a range of centrifugal forces from 14,387 pounds up to 29,450 pounds for optimal compaction power.
King of the Hill
The CASE SV207E features a low center of gravity thanks to an axle-free design that allows the engine to sit lower in the frame. When matched with the optional automatic traction control and HX drive propulsion system, the roller can compact on grades up to 67 percent.
Compact, Fuel Efficient Design
The compact frame of the SV207E allows for greater maneuverability, easier transportation from site-to-site, and more efficient total operation, including greater fuel efficiency.
Operator Environment: Enhanced
Available in both cab and open ROPS configurations, E Series soil compactors feature a spacious, comfortable and intuitive operator environment with an adjustable seat that swivels up to 80 degrees, providing excellent visibility of the drum surface. An LED display integrated within the steering wheel further improves operation, visibility and access to critical machine information.
Power to the Ground
Performance on rough, uneven terrain is improved with an oscillating articulated roller joint that maintains consistent drum-to-ground contact, and an updated drum design reduces drift and maintains constant compaction throughout each rotation.
Groundline Serviceability for Simplicity
The E Series is designed for groundline serviceability with easy access at ground level to all fluid ports, drains, service checkpoints and filters.
Details
STANDARD EQUIPMENT
OTHER
- ROPS and FOPS protection
- Hydrostatic drive for both drum and wheels
- Differential lock
- Articulated chassis
- Front and rear tow points
- Remote fluid drains
- 4-point lift and tie-down provision
- Fan guard
- Backup alarm
- Halogen work lights, 2F/2R
- Master disconnect switch
- Spring applied, hydraulic release parking brake
- 3 working speeds/1 transport speed
- Spin-on fuel, engine oil and hydraulic filters
- Spring-Assist tilting for engine Hood
OPERATOR ENVIRONMENT
- Lockable tool box
- Cup holder
- Single lever speed/direction control
- Emergency stop button
- Steering wheel embedded monitor
- 3 in (76.2 mm) retractable seat belt
INSTRUMENT PANEL
- Steering wheel spinner knob
- Horn
VIBRATION SYSTEM
- Auto vibration control
- Dual amplitude vibration
- Dual frequency vibration
OPTIONAL EQUIPMENT
OTHER
- Automatic Traction Control (ATC):
- Standard on Padfoot models
- Leveling Blade
- Padfoot shell kit w/ scrapers
- Pressurized cab with heat, ventilation, air conditioning and radio ready – antenna and 2 speakers/no radio
- Engine filter pre-cleaner
- Rotating beacon
- Ballast tires
- Analog compaction indicator
- ACE Force Intelligent Compaction (Cab only)
- ACE Force Printer (Cab only)
- Road Lights (not available on Padfoot)
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
WARRANTY
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs
Data sheets
SV207E SPECIFICATIONS
E Series Soil Compactors
FULL LINE BROCHURE
