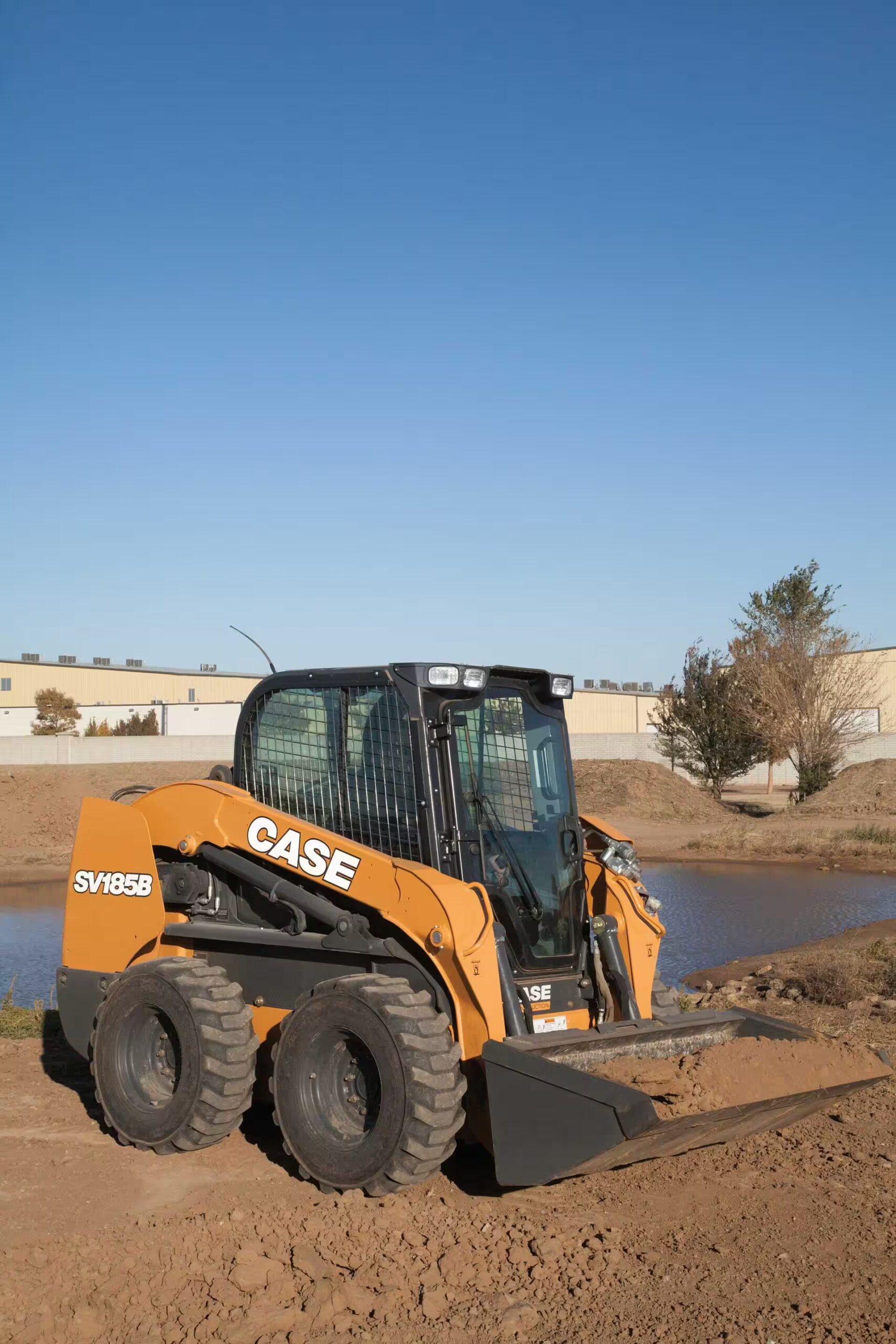

SKID STEER LOADER SV185B
Construction CASE
The SV185B is a simple, compact and powerful skid steer that’s easy to own, operate and maintain. Available in both mechanical and electro-hydraulic control configurations, the SV185B gives equipment owners an efficient and productive option for dirt work and attachment operation.
Features
Details
Data sheets
Features
Visibility and Comfort
CASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE vertical-lift skid steers also feature a low-profile H-link that improves rear visibility compared to the competition. Each model features one of the industry’s widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
Optimal Control
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
Productivity and Performance
The vertical lift SV185B offers 1,850-pounds rated operating capacity (1,950 pounds with optional counterweights), 60 horsepower, and standard and high-flow auxiliary hydraulics tackling a variety of applications in a simple and efficient machine. Optional electro-hydraulic controls and a 8-inch LCD multi-function display further allow operators to get more out of a compact-yet-powerful platform.
Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance.
Details
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS / FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS / FOPS
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Hand and foot throttle
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
- Warning lights with alarms:
- Engine coolant temperature
- Engine oil pressure
- Engine malfunction
- Hydraulic charge pressure
- Hydraulic filter restriction
- Hydraulic oil temperature:
- Critical system stop
- Engine system
- Hydraulic system
- Electrical and diagnostic system
- Warning alarms:
- Battery voltage – plus display
- Oil service
- Indicator light:
- Engine preheat
- Parking brake
- Seat bar reminder
ENGINE
- Perkins 404F-E22TA
- 135.2 CID (2.2 L) Turbo
- Tier 4 Final Certified (CEGR, DOC, DPF)
- Spark Arresting Diesel Oxidation Catalyst (DOC) muffler
- Charged Air Cooler (CAC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower:
- Gross: 60 hp (44.7 kW)
- Net: 57 hp (42.4 kW)
- Peak torque: 135 lb·ft (183 N·m)
- 120 amp alternator
- Dual element air cleaner
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank – 20 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler / radiator / oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 925 CCA 12V battery
- Master electrical disconnect
DRIVETRAIN
- 2-speed hydrostatic four wheel drive
- ASA #80 drive chain
- SAHR disc parking brake
HYDRAULICS
- Auxiliary hydraulics:
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISOflat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
LOADER
- Manual attachment coupler
- Vertical lift geometry
- Loader lift arm support strut
- In-cab loader lock
TIRES
- 10 X 16.5 Heavy duty
OTHER STANDARD FEATURES
- Halogen lights – 2 front, 2 side, 2 rear flood
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily service
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Enclosed cab:
- Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Heater and air conditioner
- AM / FM Bluetooth radio with 2 speakers
- Keyless start ignition
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- Electro-hydraulic controls:
- For drive / steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Mechanical hand controls
- Hand and foot controls:
- Hand controls the loader drive function and foot controls the bucket and boom
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Demolition cab door with polycarbonate
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
HYDRAULICS
- High-flow auxiliary hydraulics – combined:
- @ 3,050 psi (210 bar) – 30.7 gpm (116.2 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
- Auto Ride Control
LOADER
- Hydraulic attachment coupler
DRIVETRAIN
- Creep Speed Mode
OTHER
- Language decals
- Buckets
- Bolt-on bucket cutting edges
- Special paint
- CASE SiteWatch™ Telematics
- Rotating beacon
- 4 Point Lift Hook
SERVICE PARTS
- 3 inch (76.2 mm) retractable seat belt
- Bolt-on heavy-duty bucket teeth
- Second auxiliary hydraulics
- Add-on counterweights
- Road lights
- Four-corner LED strobe
- Fire Extinguisher
- Tamper Resistant Front Door Bracket
- Bucket Cylinder Guards
- Single Point Lift Hook
- FOPS level 2
- Aspirator
- Attachment Hose Guide Kit
- Drawbar
EMISSIONS
Tier 4 Final
EXTERNAL CEGR WITH DOC & DPF
Why this solution: The SV185B offers an economical entry to the skid steer market while still providing the power and performance associated with CASE B Series. Using Tier 4 Final technology that’s more affordable, this solution helps keep the unit price down.
How it works: With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces emissions, but produces more particulate matter. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat and further manage emissions while the diesel particulate filter (DPF) captures excess particulate matter and then burns it off through a combustion process known as “regeneration,” which helps maximize the life of the filter.
What this means to you: This solution requires no new additive and provides a lower upfront machine cost, but as with all DPF systems, the filter requires replacement over time, which impacts total cost of ownership. DPF regeneration also requires additional fuel burn.
WARRANTY
Base & Extended Warranty Coverage
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
