MINI EXCAVATOR CX15EV
Construction CASE

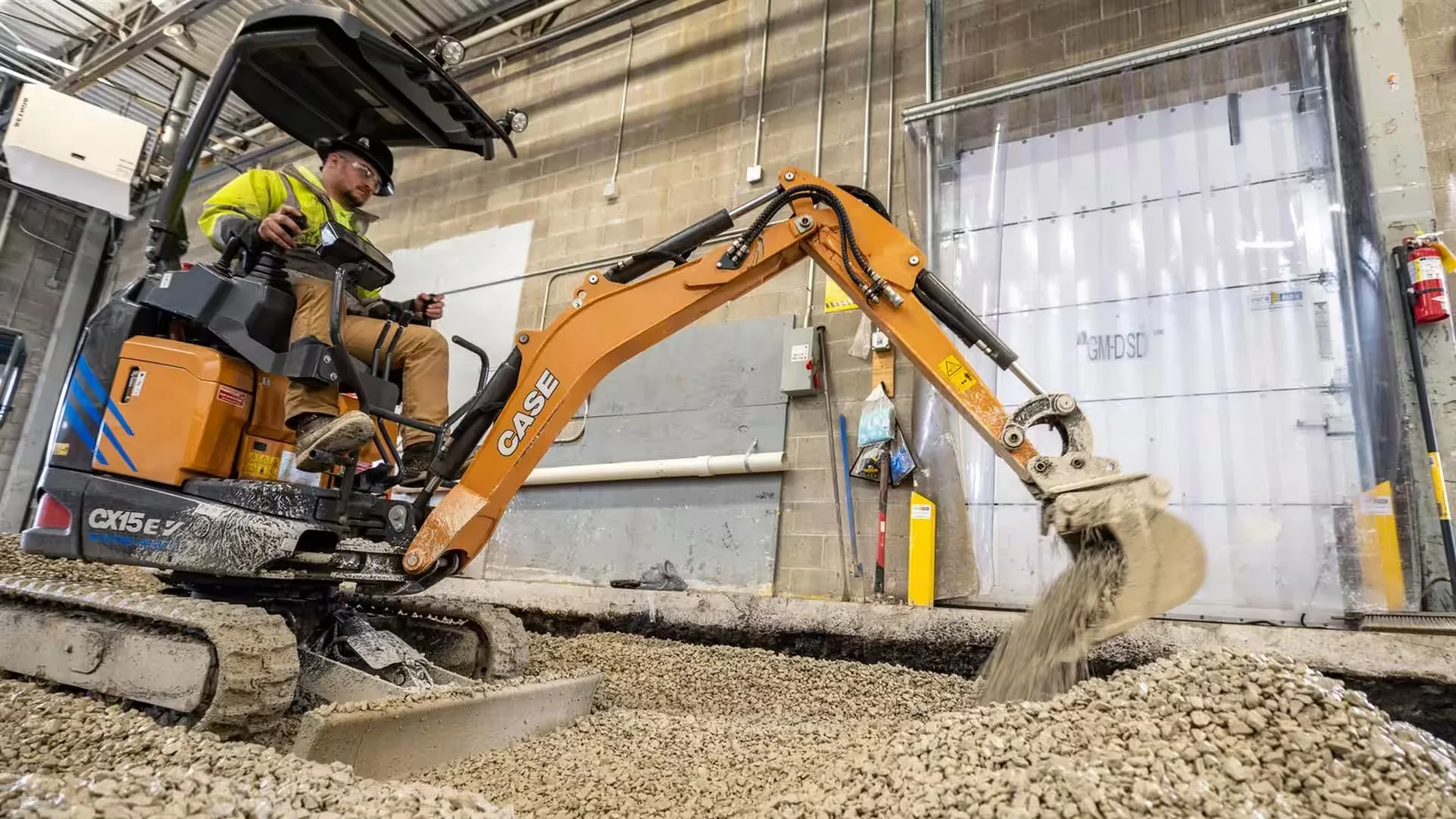

The 1.5 metric ton CX15 EV is a dynamic electric mini excavator that is easy to transport, fits through almost every entryway for work indoors or outdoors, and features the same working performance as a diesel machine — all while delivering the core benefits of electrified construction equipment: no emissions, reduced noise, and less lifetime maintenance thanks to the elimination of the diesel engine.
Features
Details
Data sheets
Features
GO ANYWHERE. HEAR EVERYTHING.
CASE electric mini excavators are easy to transport and allow you to work indoors thanks to zero emissions output, and the quiet operation improves communications between operators and other workers on site.
FULLY FEATURED CONTROLS
CASE electric minis deliver the same power and performance as diesel-powered machines, with the ability to choose operating modes, adjust control precision, and run/control attachments to get the job done right.
ATTACHED TO SUCCESS
Attachments allow you to do more with your CASE mini excavator with standard auxiliary hydraulics and an optional 2nd auxiliary circuit + the ability to set and save flow settings for optimal performance.
REDUCE DOWNTIME AND INCREASE PRODUCTIVITY
Simplified daily checks with no diesel, no engine oil, no coolant and no emissions technology help reduce downtime and make these machines extremely easy to own and operate.
Details
ÉQUIPEMENT STANDARD
ELECTRICAL
- 12-volt electrical system
- Heavy-duty battery
- Ignition key, which opens every machine lock
- Horn
- Electronic display and controls
- 3 pre-set Control modes
- Electronic flow setting for every mode and auxiliary circuits
- On-board battery charger (120 VAC)
- Control pattern mode
HYDRAULICS
- Joysticks with Electro-Hydraulic proportional controls
- Electro-Hydraulic proportional swing control
- 1st Auxiliary (AUX1) circuit with Electro-Hydraulic proportional control
- Boom Lift cylinder and dozer blade cylinder protection
- Helical Gear Pump
- Bio-hydraulic oil and lubricants
TRACK DRIVE
- Rubber belt tracks
- 2-speed travel with Automatic Shift Down (from 2nd to 1st gear if more traction is required) and Shift Up
- Fully hydrostatic drive system
- Sealed and lubricated track rollers
- Track Tensioner Hydraulic adjustment with grease
LIGHTING
- Standard LED working lights (boom)
UPPER STRUCTURE
- Standard arm: 3 ft 4 in (1.02 m)
- Standard Dozer Blade
OPERATOR ENVIRONMENT
- Tiltable Roll-bar (ROPS/TOPS)
- Optional canopy (FOPS Level 1)
- Vinyl seat w/ mechanical suspension
- Height adjustable arm rests
- Controls cut-out lever (safety lever)
- 2 in (51 mm) Seat belt
- Bottle/ cup holder
- Keyed locks common w/ starting key
- Document glove box
- Slewing locking lever
- Auxiliary electrical socket
- Control Panel
- Controls:
- Travel Levers
- Travel foot pedals
- EH joysticks for boom, arm, bucket, and swing
- Emergency stop button
- Boom swing roller switch
- Horn
- Auxiliary hydraulics roller
- Ignition switch
- Blade control lever
- Display includes:
- Hydraulic Oil Temp
- Machine hours
- Time
- Warning Indicators
- Message area
- Function Indicators
- Work modes
- Motor speed
- Battery level indicator
- Fast drive indicator
- Equipment selection
- Control mode
OTHER
- Swing boom – 60° left/70° right
- Standard counterweight
- Extendable undercarriage
- Operator manual
- Document box and Tool kit for maintenance
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 5-yr Advanced data subscription for 2-way communication
WARRANTY
- Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Canopy (FOPS Level 1)
ELECTRICAL
- Offboard Fast-Charger
VISIBILITY
- Extra LED working lights (roof)
- Rotating beacon
HYDRAULICS
- 2nd Auxiliary (AUX2) circuit with Electro-Hydraulic proportional control
OTHER
- Optional long arm: 3 ft 9 in (1.15 m)
ATTACHMENTS
- Mechanical quick coupler
- Digging buckets
WARRANTY
Base & Extended Warranty Coverage
- 2yr/3,000 hours Full machine limited warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
