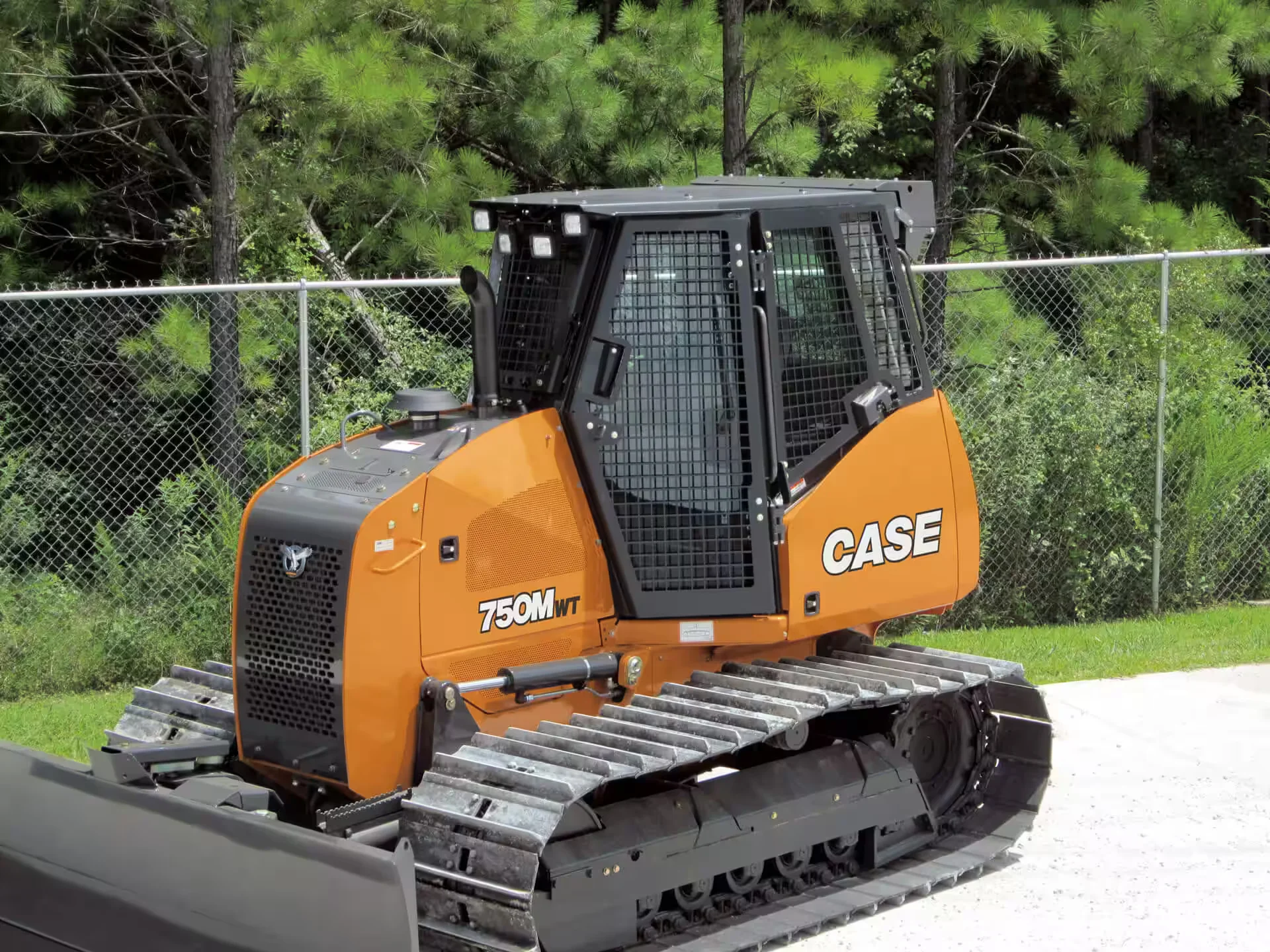

CRAWLER DOZER 750M
Construction CASE
Best-in-class drawbar pull and horsepower in an easy-to-transport footprint and weight class — the 750M is a practical and versatile dozer capable of performing finish grading on residential and commercial sites, as well as handling more intensive earthwork on larger developments. The dozer is available in numerous track and blade configurations to meet specific applications — all compatible with a full range of machine control/grade control systems and factory fit option.
Features
Details
Data sheets
Features
Power and Productivity
Best-in-class horsepower and drawbar pull ensures you always have the power and tractive effort to get the job done. Match that with excellent control customization and a load monitoring system that automatically adjusts performance to movement and the load on the blade — and the 750M is extremely powerful, efficient and versatile.
Total Control for the Operator
The 750M allows operators to adjust shuttle (forward-to-reverse) and steering sensitivity to Smooth, Moderate or Aggressive to match conditions on the site. And an advanced load monitoring system automatically reduces track speed (increasing torque) with a heavier load on the blade, and increases track speed (reducing torque) with a lighter load on the blade, ensuring that the machine is working at optimal power and efficiency at all times.
Operator Comfort and Jobsite Visibility
CASE M Series dozers provide some of the industry’s best sight lines down to the blade, the tracks and the worksite with excellent visibility and lots of glass from floor to ceiling. A true positive-pressure cab with advanced sealing helps keep out dirt, dust and noise — creating a working environment with one of the industry’s lowest sound ratings. And an “isolated” design further reduces cab vibration and provides a smoother ride.
Ease of Maintenance and Service
The 750M features easy access and grouped service points — and the enhanced CASE SiteWatch™ telematics provides insight into machine performance, maintenance intervals and more — allowing you to stay ahead of service and achieve optimal uptime.
Protected by CASE ProCare
Each CASE M Series dozer provides peace of mind and controlled owning and operating expenses with ProCare:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year Advanced CASE SiteWatch™ telematics subscription
Details
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- Optional ROPS cab
- Single lever control for speed, steering and direction
- Cloth air suspension seat w/ back adjustment
- Retractable 3 in (76 mm) seat belt
- Adjustable armrest
- Two foot rest
- Rearview mirror
- Two door windshield wipers
- Dome light
- 12-volt accessory outlet
- Headliner
- Floor mat
- Rear Wiper
- Radio
- Heat/AC
- Warning lights:Air filter; Alternator; Diagnostic fault indicator; Engine coolant temperature; Engine oil pressure; Hydraulic filter; Low fuel level; Park brake engaged; Service soon indicator; Transmission filter; Transmission charge pressure; Transmission temperature
- Gauges: Battery voltage; Fuel level; Digital hour meter/tachometer/diagnostic/service reminder; Transmission oil temperature; Transmission speed indicator; Water temperature
- Audible warnings: Engine coolant temperature; Engine oil pressure; Low fuel level; Transmission charge pressure; Temperature/hydraulic temperature
ENGINE
- FPT F5HFL413J*A002
- Tier 4 Final Certified
- DPF
- CEGR
- Cold start aid – glow plugs with standard dual 12-volt batteries
- Automatic fan belt tensioner
- Integral engine oil cooling
- Fuel filter
- Dual element air cleaner
- 120 amp alternator
- 950 CCA 12-volt battery
- Hinged engine side panels
DRIVETRAIN
- Dual path infinitely variable, single-lever controlled hydrostatic drive, with electronic straight tracking, power turns and counter-rotation
- Final drive: Triple reduction; helical gear/planetary decelerator with hydrostatic drive retardation
- Spring-applied hydraulic release parking brake
BLADE
- 52°– 60° variable pitch, with integral adjustment tool
- Single lever control for blade lift, angle and tilt
UNDERCARRIAGE
- Hydraulic track adjusters
- Easy clean track covers
- Sealed and Lubricated Track Chain (SALT)
- Permanently lubricated track and carrier rollers
- Track adjuster guard
- Track guides – front and rear
- Shock resistance idler mounting
OTHER
- Backup alarm
- Horn
- Work lights: 2 front/1 rear
- Master disconnect switch
- Mirror
- Turbine Pre-cleaner
- Front pull hook
- Rear tow hook
- Sweeps
- Environmental Drain
- 4-Spool Hydraulic Valve with plugs for field installed Ripper
- Transport Protection
- Anti-vandalism package
- Rear Transmission Guard
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
ProCare
- CASE ProCare – Full Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and SiteWatch telematics
OPTIONAL EQUIPMENT
REAR MOUNTED EQUIPMENT
- Ripper – 5 position with 3 shanks
- Hydraulic pump with PTO
- Drawbar
BLADES
- 96 in (2 438 mm)
- 104 in (2 642 mm)
- 109 in (2 769 mm)
- 120 in (3 058 mm)
- 124 in (3 160 mm)
GUARDS
- Center rock guard
PRECISION
- Factory Fit CoPilot
- Factory Fit 2D Laser
- Factory Fit 3D GNSS
- Leica Blade Guidance Ready
- Trimble Blade Guidance Ready
- Topcon Blade Guidance Ready
SCREENS
- Radiator brush screen
- Sandblast screen
OTHER
- CASE Extended Life Track
- Additional work lights
- Front counterweight
- Rearview mirror
- Severe Cold Weather Package
WARRANTY
