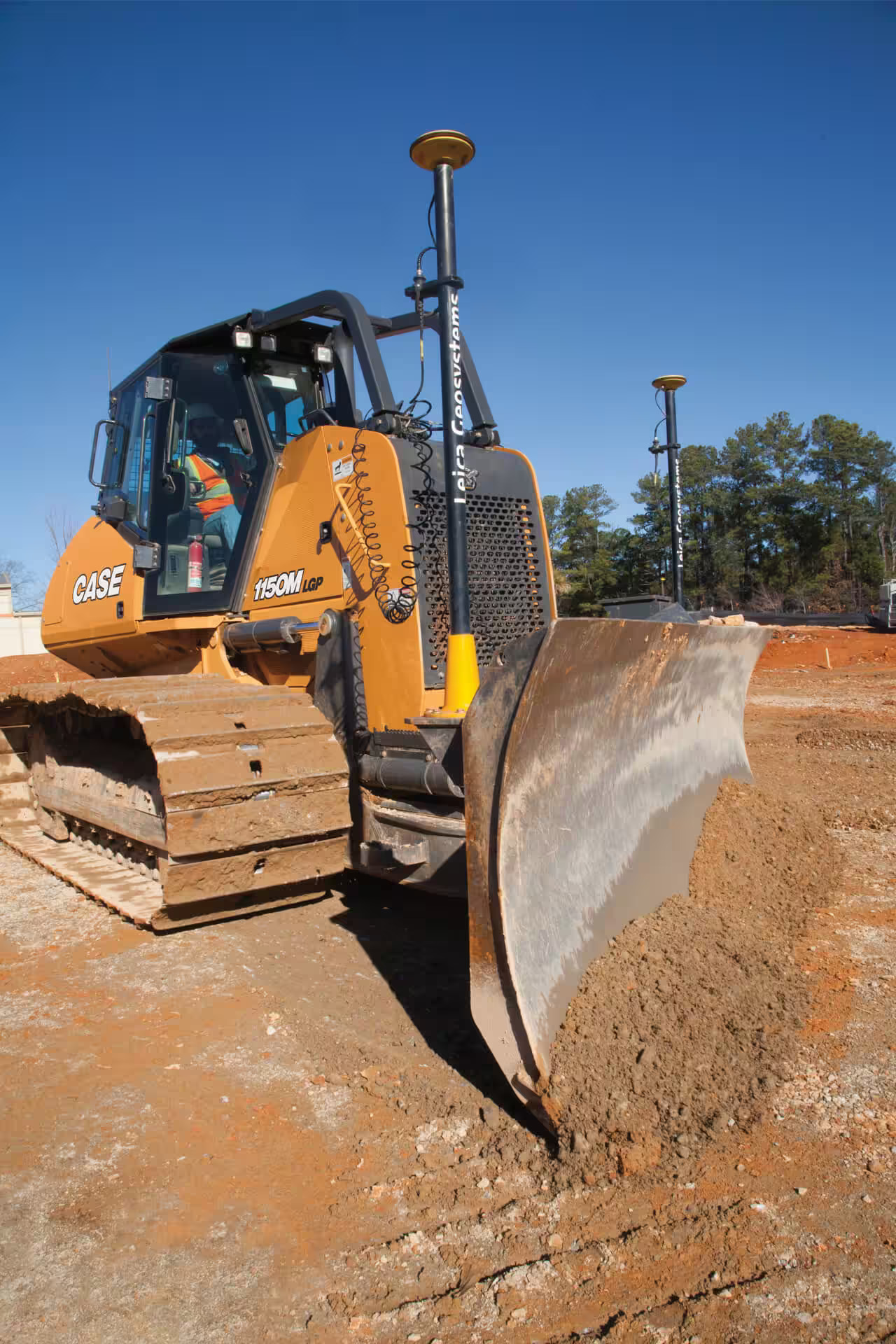

CRAWLER DOZER 1150M
Construction CASE
The CASE 1150M delivers best-in-class drawbar pull and offers even more powerful control customization with the ability to set shuttle, steering and blade sensitivity to Smooth, Moderate or Aggressive to match jobsite demands. It features M Series industry-leading visibility and ease of maintenance, and is compatible with a full range of machine control/grade control solutions, including the factory-fit machine control option, as well as CASE Universal Machine Control.
Features
Details
Data sheets
Features
Power and Productivity
Best-in-class drawbar pull. Three adjustable settings for shuttle, steering and blade sensitivity. A powerful load management system that further optimizes productivity and machine performance. And a selective catalytic reduction (SCR)-only emissions system that, as an aftertreatment solution, ensures that all productive engine power is put towards the work. The CASE 1150M has the power, size and control to do the heavy work.
Total Control for the Operator
The 1150M allows operators to adjust shuttle (forward-to-reverse), steering and blade sensitivity to Smooth, Moderate or Aggressive to match conditions on the site. An advanced load monitoring system automatically reduces track speed (increasing torque) with a heavier load on the blade, and increases track speed (reducing torque) with a lighter load on the blade, ensuring that the machine is working at optimal power and efficiency at all times. Additional fingertip controls for Blade Shake (shedding material off the blade) and Fine Grading (cutting blade speed by 40 percent for greater control) further improve performance.
Operator Comfort and Jobsite Visibility
CASE M Series dozers provide some of the industry’s best sight lines down to the blade, the tracks and the worksite with excellent visibility and lots of glass from floor to ceiling. A true positive-pressure cab with advanced sealing helps keep out dirt, dust and noise — creating a working environment with one of the industry’s lowest sound ratings. And an “isolated” design further reduces cab vibration and provides a smoother ride.
Ease of Maintenance and Service
The 1150M features easy access and grouped service points — and the enhanced CASE SiteWatch™ telematics provides insight into machine performance, maintenance intervals and more — allowing you to stay ahead of service and achieve optimal uptime.
Protected by CASE ProCare
Each CASE M Series dozer provides peace of mind and controlled owning and operating expenses with ProCare:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year Advanced CASE SiteWatch™ telematics subscription
Details
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS cab
- Single lever control for speed, steering and direction
- Cloth air suspension seat w/ back adjustment
- Retractable 3 in (76 mm) seat belt
- Adjustable armrest
- Two foot rest
- Rearview mirror
- Two door windshield wipers
- Dome light
- 12-volt accessory outlet
- Headliner
- Floor mat
- Rear Wiper
- Radio
- Heat/AC
- Warning lights: Air filter; Alternator; Diagnostic fault indicator; Engine coolant temperature; Engine oil pressure; Hydraulic filter; Low fuel level; DEF fluid level; Park brake engaged; Service soon indicator; Transmission filter; Transmission charge pressure
- Gauges: Battery voltage; Fuel level; Digital hour meter/tachometer/diagnostic/service reminder; Transmission oil temperature; Transmission speed indicator; Water temperature: Diesel Exhaust Fluid (DEF) level
- Audible warnings: Engine coolant temperature; Engine oil pressure; Low fuel level; Transmission charge pressure; Temperature/hydraulic temperature
ENGINE
- F4HFE613F*A002
- Tier 4 Final Certified
- SCR
- Automatic fan belt tensioner
- Integral engine oil cooling
- Fuel filter
- Dual element radial seal air cleaner
- 120 amp alternator
- (2) 950 CCA 12-volt batteries
- Anti-sandblast radiator
- Coolant Heated DEF Lines
- Pusher Fan
- Hinged engine side panels
DRIVETRAIN
- Dual path infinitely variable, single-lever controlled hydrostatic drive, with electronic straight tracking, and counter-rotation
- Final drive: Triple reduction; helical gear/planetary decelerator with hydrostatic drive retardation
- Spring-applied hydraulic release parking brake
BLADE
- 55° – 60° variable pitch, with integral adjustment tool
- Single lever control for blade lift, angle and tilt
UNDERCARRIAGE
- Hydraulic track adjusters
- Sealed and Lubricated Track Chain (SALT)
- Permanently lubricated track and carrier rollers
- Track adjuster guard
- Track guides – front and rear
- Robust smooth one piece track frames with easy clean-out
- Robust rock guards
- Enhanced track recoil system
- Central grease point for pivot shaft and equalizer beam
- Low noise system configuration
- Low vibration system configuration
OTHER
- Backup alarm
- Horn
- Work lights: 2 front/1 rear
- Master disconnect switch
- Mirror
- Turbine Pre-cleaner
- Front pull hook
- Rear tow hook
- Environmental Drain
- Grid Heater/Cold Start
- Transport Protection
- Anti-vandalism package
- Rear transmission guard
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
ProCare
- CASE ProCare – Full Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and SiteWatch telematics
OPTIONAL EQUIPMENT
HYDRAULICS
- 4 spool hydraulic valve for field-installed ripper
REAR MOUNTED EQUIPMENT
- Ripper – 5 position with 3 shanks
- Hydraulic pump with PTO
- Drawbar
- Drawbar with step
BLADES
- 120 in (3050 mm)
- 132 in (3355 mm)
GUARDS
- Sweeps
- Center rock guard
PRECISION
- Factory Fit CoPilot
- Factory Fit 2D Laser
- Factory Fit 3D GNSS
- Universal Blade Guidance: Compatible with Leica, Trimble and Topcon
- Leica Blade Guidance Ready
- Trimble Blade Guidance Ready
- Topcon Blade Guidance Ready
SCREENS
- ROPS rear screen
- Cab rear screen
- ROPS side screen
- Radiator brush screen
- Sandblast Screen
OTHER
- CASE Extended Life Track
- Additional work lights
- Front counterweight with pull hook
- Severe Cold Weather Package
WARRANTY
